SPECIFICATION
MATERIAL:
HOUSING: PA9T CONTACT: C5191,T=0.20MM
SHELL: KIRSITE
ELECTRICAL:
CURUENT RATAING: VBUS AND GND CONTACTS RATED AT 1.25A
PARALLELED FOR A TOTAL OF 5A
INTIAL CONTACT RESISTANCE : 40 MEGOHMS
DIEELECRIC WITHSTANDING VOLTAGE:10OV AC MIN
MECHANICAL CHARACTERISTICS:
MATING FTORCE: 5-20N
UNMATING FORCE: 8-20N(INITIAL)6-20N(ATER 10000 CYCLES)
FREQUENCE: 200+50 CYCLES/HOUR.10000 CYCLES )
OPERATINC TEMPERATURE:-40℃C-80℃
WATERPROOF:IPX57

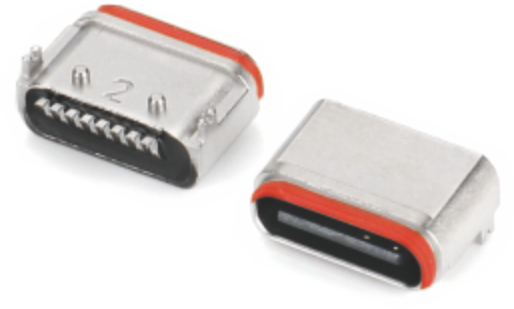

| Product Type | Water Proof Type C |
| Vgorconn P/N | A01976 Series |
| Pin No | 8PN |
| Welding Way | SMT |
| Shell Material | Kirsite |
| Housing Material | LCP/Nyon UL94V-0 |
| Color | Black /Nature |
| Teminal | Copper Aly |
| Plating | Gold |
| Sat spray test | 48H |
| Waterproof grade | PX5/PX7 |
| Temperature Range | 45℃-85℃ |
| Dimensions mm) | 6.35×9.6×3.37 |
