SPECIFICATION
MATERIAL:
HOUSING: PA9T CONTACT: C5191,T=0.20MM
SHELL: KIRSITE
ELECTRICAL:
CURUENT RATAING: VBUS AND GND CONTACTS RATED AT 1.25A
PARALLELED FOR A TOTAL OF 5A
INTIAL CONTACT RESISTANCE : 40 MEGOHMS
DIEELECRIC WITHSTANDING VOLTAGE:10OV AC MIN
MECHANICAL CHARACTERISTICS:
MATING FTORCE: 5-20N
UNMATING FORCE: 8-20N(INITIAL)6-20N(ATER 10000 CYCLES)
FREQUENCE: 200+50 CYCLES/HOUR.10000 CYCLES )
OPERATINC TEMPERATURE:-40℃C-80℃
WATERPROOF:IPX58

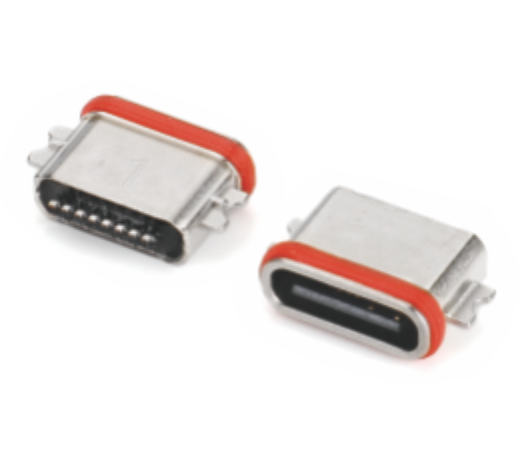

| Product Type | Water Proof Type C |
| Vigorconn P/N | A01978 Series |
| Pin No | 8PN |
| Welding Way | SMT |
| Shell Material | Kirsite |
| Housing Materia | LCP/Nylon UL94V-0 |
| Color | Black/Nature |
| Terminal | Copper Alloy |
| Plating | Gold |
| Salt spray test | 48H |
| Waterproof grade | IPX5/PX7 |
| Temperature Range | 45℃~85℃ |
| Dimensions (mm) | 6.3×10X×3.3 |
