SPECIFICATION
MATERIAL:
HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94V-0
CONTACTA(B): COPPER ALOY; SHELL: SUS; MIDDLE PLATE: SUS
ELECTRICAL:
CURUENT RATAING: VBUS AND GND CONTACTS RATED AT 3A MAX
VBUS AND GND CONTACTS RATED AT O.5A MIN
0.9AMPS MAX.FOR ALL OTHER CONTACT. PARALLELED FOR A TOTAL OF 5A
INTIAL CONTACT RESISTANCE: 40 40 MILLIOHMS MAX
DIEELECTRIC WITHSTANDING VOLTAGE:100V AC MIN
MECHANICAL CHARACTERISTICS:
MAIING FORCE: 5~20N
UNMATING FORCE: 8~20N(INITIAL), 6~20N (AFTER 10000 CYCLES)
FREQUENCE: 200±50 CYLES/HOUR,10000CYCLES
OPERATING TEMPERATURE:-40℃~80℃
IR REFLOW: THE PEAK TEPERATURE ON THE BOARD
SHALL BF MAINTAINED FOR 10 SECONDS AT 269℃

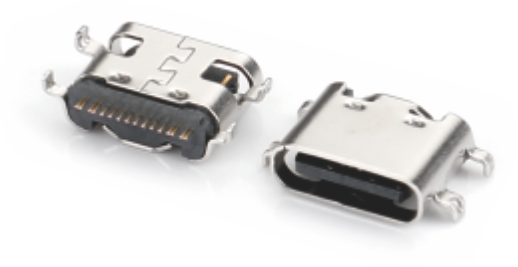

| Product Type | USB Type C |
| Vigoroon P/N | 10025X Series |
| Pin No | 16PN |
| Welding Way | SMT |
| Shell Materia | Stainless steel |
| Housing Material | LCP/Nylon UL94V-0 |
| Color | Black/Nature |
| Terminal | Copper Alloy |
| Plating | Gold |
| Sat soray test | 48H |
| Durablty cycle | 10000 cycle |
| Temperature Range | -45℃~85℃ |
| Dimensions {mm) | 6.5X8.94X3.16 |
