SPECIFICATION
MATERIAL:
HOUSING: PA9T CONTACT: C5191,T=0.20MM
SHELL: KIRSITE
ELECTRICAL:
CURUENT RATAING: VBUS AND GND CONTACTS RATED AT 1.25A
PARALLELED FOR A TOTAL OF 5A
INTIAL CONTACT RESISTANCE : 40 MEGOHMS
DIEELECRIC WITHSTANDING VOLTAGE:10OV AC MIN
MECHANICAL CHARACTERISTICS:
MATING FTORCE: 5-20N
UNMATING FORCE: 8-20N(INITIAL)6-20N(ATER 10000 CYCLES)
FREQUENCE: 200+50 CYCLES/HOUR.10000 CYCLES )
OPERATINC TEMPERATURE:-40℃C-80℃
WATERPROOF:IPX45

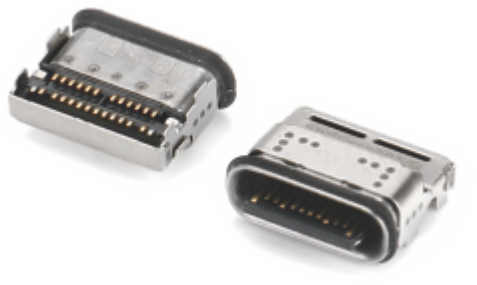

| Product Type | Water Proof Type C |
| Vigorcon P/N | 7508T Seres |
| Pin No | 24PN |
| Welding Way | SMT |
| Shel Material | Stainless steel |
| Housing Matera | LCP/Nyon UL94V-0 |
| Cobor | Black/Nature |
| Terminal | Copper Aloy |
| Plating | God |
| Sat spray test | 48H |
| Waterprof grade | PX5/PX7 |
| Temperatre Range | -45C-85C |
| Dimensions /mm) | 8.6×98×3.5 |
