SPECIFICATION
MATERIAL:
HOUSING: PA9T CONTACT: C5191,T=0.20MM
SHELL: KIRSITE
ELECTRICAL:
CURUENT RATAING: VBUS AND GND CONTACTS RATED AT 1.25A
PARALLELED FOR A TOTAL OF 5A
INTIAL CONTACT RESISTANCE : 40 MEGOHMS
DIEELECRIC WITHSTANDING VOLTAGE:10OV AC MIN
MECHANICAL CHARACTERISTICS:
MATING FTORCE: 5-20N
UNMATING FORCE: 8-20N(INITIAL)6-20N(ATER 10000 CYCLES)
FREQUENCE: 200+50 CYCLES/HOUR.10000 CYCLES )
OPERATINC TEMPERATURE:-40℃C-80℃
WATERPROOF:IPX43

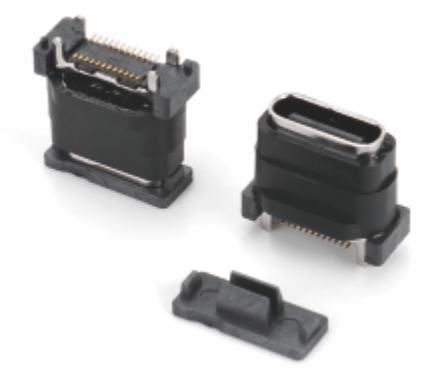

| Product Type | Water Proof Type C |
| Vigoroon P/N | 224103 Series |
| Pin No | 24PN |
| Welding Way | SMT |
| ShelMatera | Stainless ste/Myon |
| Housing Material | LCP/Non UL94V-0 |
| Color | Black/Nature |
| Temmina | Copper Aloy |
| Pating | God |
| Sat spray test | 48H |
| Waterprof grade | IPX5/PX7 |
| Temperatre Range | 45℃-85C |
| Dimersiors (mm) | 10×12×68 |
