1.CURRENT RATING: 3.0 A
2.VOLTAGE RATING: 5.0 V
3.VBUS & GND PINS AND OTHER PINS: 40mΩ/PIN MAX
SHIELD: 50mΩ/MAX
LLCR MAX. CHANGE OF ALL PINS: 10mΩ
4.INSULATION RESISTANCE: 100MΩ MIN
5.DIELECTRIC WITHSTAND VOLTAGE,AC 100V FOR 1MINUTE
6.INSERTION FORCE: 0.5~2.0kgf
7.UNMATING FORCE: 0.8-2.0kgf
8.DURABILITY: 10000 CYCLES
9.THE PEAK TEMPERATURE ON THE BOARO SHALL
BE MAINTAINED FOR 10 SECONDS AT 260°C
| Product Type | Pin No | Welding Way | Housing Material | Temperature Range |

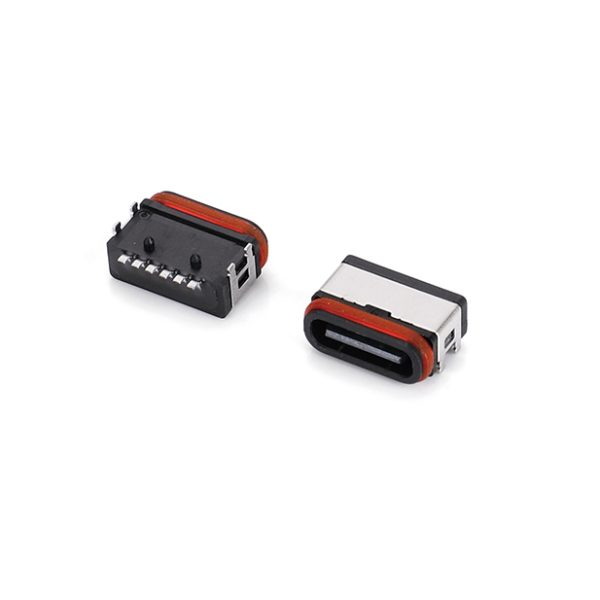

| Water Proof Type C | 6PN | SMT | PA46+LCP | -25℃-85℃ |
| Color | Terminal | Plating | Waterpoof grade | |
| Black | SUS | Au3u” | IP67 |
