SPECIFICATION:
1.CURRENT RATING: 5.0 A
2.VOLTAGE RATING: 5.0 V
3.VBUS & GND PINS AND OTHER PINS : 40mΩ / PIN MAX
SHIELD : 50mΩ / MAX
LLCR MAX. CHANGE OF ALL PINS : 10mΩ
4.INSULATION RESISTANCE : 100MΩ MIN
5.DIELECTRIC WITHS TAND VOLTAGE, AC 100V FOR 1 MINUTE
6.INSERTION FORCE:0.5~2.0kgf
7.UNMATING FORCE:0.8-2.0kgf
8.DURABILITY : 10000 CYCLES
9.THE PEAK TEMPERATURE ON THE BOARO SHALL
BE MAINTAINED FOR 10 SECONDS AT 260°C
| Product Type | Pin No | Housing Material | Temperature Range |

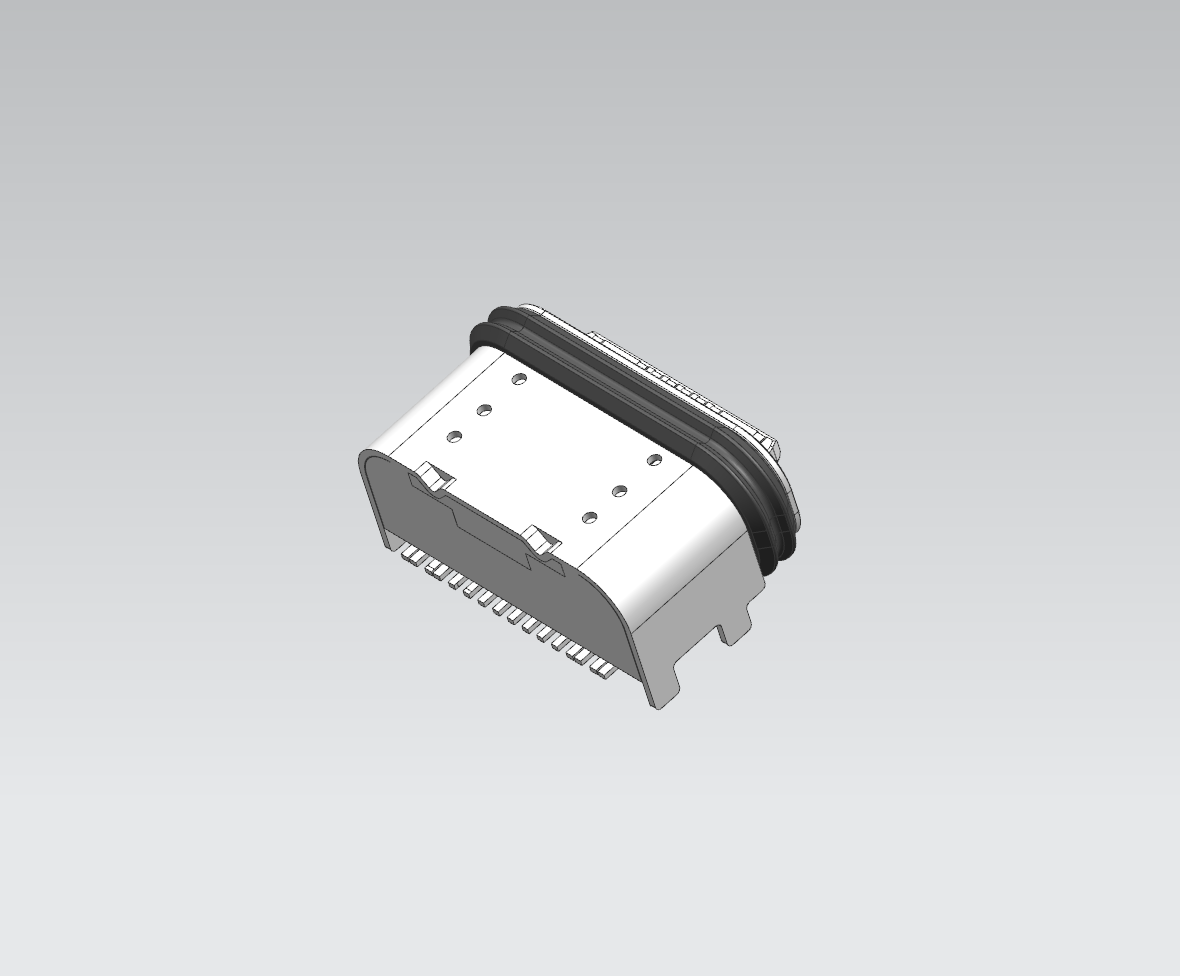

| Water Proof Type C | 16PN | PA9T | -25℃-+85℃ |
| Color | Terminal | Plating | Waterpoof grade |
| Black | SUS | Au3u” | IPX5 |
