SPECIFICATION
MATERIAL:
HOUSING: LCP(UL94V-0)
ACTUATOR: LCP(UL94V-0)
TERMINAL: PHOSPHOR BRONZE
SOLDER PAD: PHOSPHOR BRONZE
PLATING:
TERMINAL:1u”~3u” GOLD FLASH(NICKEL BARRIER)
SOLDER PAD: TIN OVER NICKEL(LEAD FREE)
RATING:
OPERATING VOLTAGE: 50V
CURRENT RATING: 0.2A
OPERATING TEMPERATURE:-55℃ ~+113℃

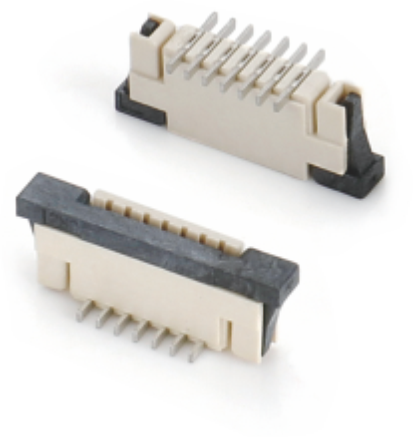

| Product Type | FPC |
| Vigorcom P/N | L107 Series |
| Pin No | 2-30PIN |
| Welding Way | SMT |
| Housing Material | LCP/Nyon UL94V-0 |
| Cover Material | LCP/Nyion UL94V-0 |
| Color | Black/Nature |
| Terminal | Copper Alloy |
| Plating | Gold Or Tin |
| Cumeot Bating AC/DC | 0.5A |
| Vottage Pating AC/DC | 50V |
| Temperature Range | 45℃~85℃ |
