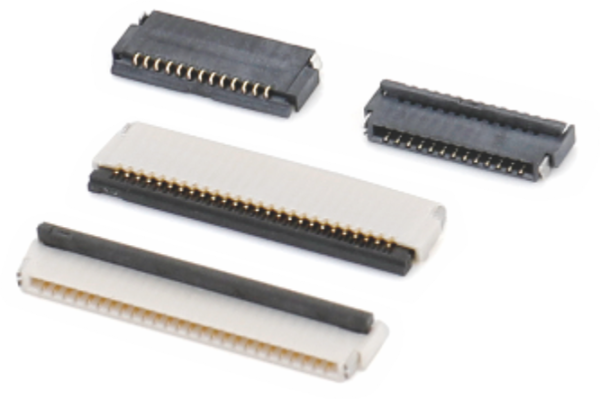

SPECIFICATION
MATERIAL:
HOUSING: LCP(UL94V-0)
ACTUATOR: LCP(UL94V-0)
TERMINAL: PHOSPHOR BRONZE
SOLDER PAD: PHOSPHOR BRONZE
PLATING:
TERMINAL:1u”~3u” GOLD FLASH(NICKEL BARRIER)
SOLDER PAD: TIN OVER NICKEL(LEAD FREE)
RATING:
OPERATING VOLTAGE: 50V
CURRENT RATING: 0.2A
OPERATING TEMPERATURE:-55℃ ~+88℃
| PINNO | DMA | DIM.B | DIMC | DMD | DME | DIMF | DM.G |
| 4 | 4 | 1.5 | 2.57 | 3.39 | 3.1 | 3.9 | 2.5 |
| 6 | 5 | 2.5 | 3.57 | 4.39 | 4.1 | 4.9 | 3.5 |
| 7 | 5.5 | 3 | 4.07 | 4.89 | 4.6 | 5.4 | 4 |
| 8 | 6 | 3.5 | 4.57 | 5.39 | 5.1 | 5.9 | 4.5 |
| 9 | 6.5 | 4 | 5.07 | 5.89 | 5.6 | 6.4 | 5 |
| 10 | 7 | 4.5 | 5.57 | 6.39 | 6.1 | 6.9 | 5.5 |
| 11 | 7.5 | 5 | 6.07 | 6.89 | 6.6 | 7.4 | 6 |
| 12 | 8 | 5.5 | 6.57 | 7.39 | 7.1 | 7.9 | 6.5 |
| 14 | 9 | 6.5 | 7.57 | 8.39 | 8.1 | 8.9 | 7.5 |
| 16 | 10 | 7.5 | 8.57 | 9.39 | 9.1 | 9.9 | 8.5 |
| 20 | 12 | 9.5 | 10.57 | 11.39 | 11.1 | 11.9 | 10.5 |
| 22 | 13 | 10.5 | 11.57 | 12.39 | 12.1 | 12.9 | 11.5 |
| 23 | 13.5 | 11 | 1207 | 12.89 | 12.6 | 13.4 | 12 |
| 24 | 14 | 11.5 | 12.57 | 13.39 | 13.1 | 13.9 | 12.5 |
| 26 | 15 | 12.5 | 13.57 | 14.39 | 14.1 | 14.9 | 13.5 |
| 30 | 17 | 14.5 | 15.57 | 16.39 | 16.1 | 16.9 | 15.5 |
| 32 | 18 | 15.5 | 16.57 | 17.39 | 17.1 | 17.9 | 16.5 |
| 34 | 19 | 16.5 | 17.57 | 18.39 | 18.1 | 18.9 | 17.5 |
| 40 | 22 | 19.5 | 20.57 | 21.39 | 21.1 | 21.9 | 20.5 |
| 45 | 24.5 | 22 | 23.07 | 23.89 | 23.6 | 24.4 | 23 |
| 50 | 27 | 24.5 | 25.57 | 26.39 | 26.1 | 26.9 | 25.5 |
