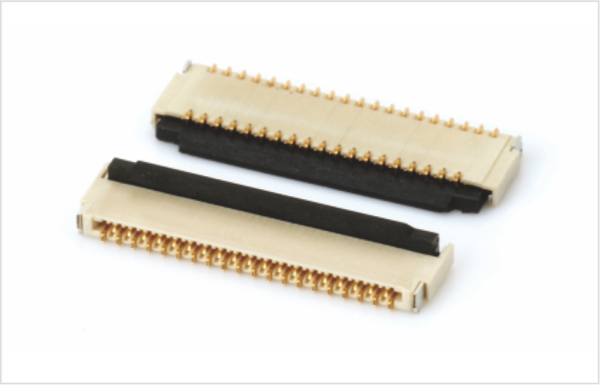

SPECIFICATION
MATERIAL:
HOUSING: LCP(UL94V-0)
ACTUATOR: LCP(UL94V-0)
TERMINAL: PHOSPHOR BRONZE
SOLDER PAD: PHOSPHOR BRONZE
PLATING:
TERMINAL:1u”~3u” GOLD FLASH(NICKEL BARRIER)
SOLDER PAD: TIN OVER NICKEL(LEAD FREE)
RATING:
OPERATING VOLTAGE: 50V
CURRENT RATING: 0.2A
OPERATING TEMPERATURE:-55℃ ~+87℃
| PNNO. | DMA | DMB | DM.C | DIM.D | DME | DIMF |
| 7 | 4.3 | 1.2 | 1.8 | 2.43 | 3.75 | 240 |
| 9 | 4.9 | 1.8 | 2.4 | 3.03 | 4.35 | 3 |
| 11 | 5.5 | 240 | 3 | 3.63 | 4.95 | 3.6 |
| 13 | 610 | 3 | 3.6 | 4.23 | 5.55 | 4.2 |
| 15 | 6.7 | 3.6 | 4.2 | 483 | 6.15 | 4.8 |
| 17 | 7.3 | 4.2 | 4.8 | 5.43 | 6.75 | 5.4 |
| 19 | 7.9 | 4.8 | 5.4 | 6.03 | 7.35 | 6 |
| 21 | 8.5 | 5.4 | 6 | 6.63 | 7.95 | 6.6 |
| 23 | 9.1 | 6 | 6.6 | 7.23 | 8.55 | 7.2 |
| 25 | 9.7 | 6.6 | 7.2 | 7.83 | 9.15 | 7.8 |
| 27 | 10.3 | 7.2 | 7.8 | 8.43 | 9.75 | 8.4 |
| 29 | 10.9 | 7.8 | 840 | 9.03 | 10.35 | 9 |
| 31 | 11.5 | 8.4 | 9 | 9.63 | 10.95 | 9.6 |
| 33 | 12.1 | 9 | 9.6 | 10.23 | 11.55 | 10.2 |
| 35 | 12.7 | 9.6 | 10.2 | 10.83 | 12.15 | 10.8 |
| 37 | 13.3 | 10.2 | 10.8 | 1.43 | 12.75 | 11.4 |
| 39 | 13.9 | 10.8 | 11.4 | 12.03 | 13.35 | 12 |
| 41 | 14.5 | 11.4 | 12 | 12.63 | 13.95 | 12.6 |
| 43 | 15.1 | 12 | 12.6 | 13.23 | 14.55 | 13.2 |
| 45 | 15.7 | 1260 | 13.2 | 13.83 | 15.15 | 13.8 |
| 47 | 16.3 | 13.2 | 13.8 | 14.43 | 15.75 | 14.4 |
| 49 | 16.9 | 13.8 | 14.4 | 15.03 | 16.35 | 15 |
| 51 | 17.5 | 14.4 | 15.6 | |||
| 53 | 18.1 | 15 | 15.6 | 16.23 | 17.55 | 16.2 |
| 55 | 18.7 | 15.6 | 16.2 | 16.83 | 18.15 | 16.8 |
| 57 | 19.3 | 16.2 | 16.8 | 17.43 | 18.75 | 1740 |
| 59 | 19.9 | 16.8 | 17.4 | 18.03 | 19.35 | 18 |
| 61 | 20.5 | 17.4 | 18 | 18.63 | 19.95 | 18.6 |
| 63 | 21.1 | 18 | 18.6 | 19.23 | 20.55 | 19.2 |
| 65 | 21.7 | 18.6 | 19.2 | 19.83 | 21.15 | 19.8 |
| 67 | 22.3 | 19.2 | 19.8 | 20.43 | 21.75 | 20.4 |
| 69 | 22.9 | 19.8 | 20.4 | 21.03 | 22.35 | 21 |
| 71 | 23.5 | 2040 | 21 | 21.63 | 22.95 | 21.6 |
